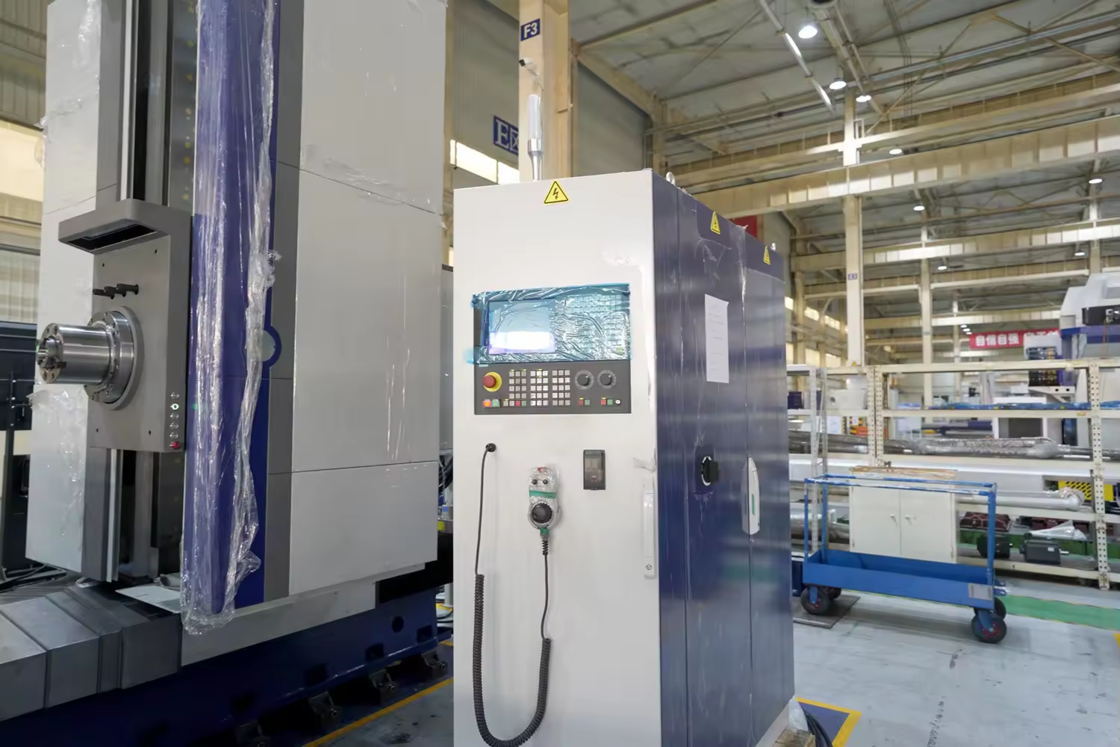

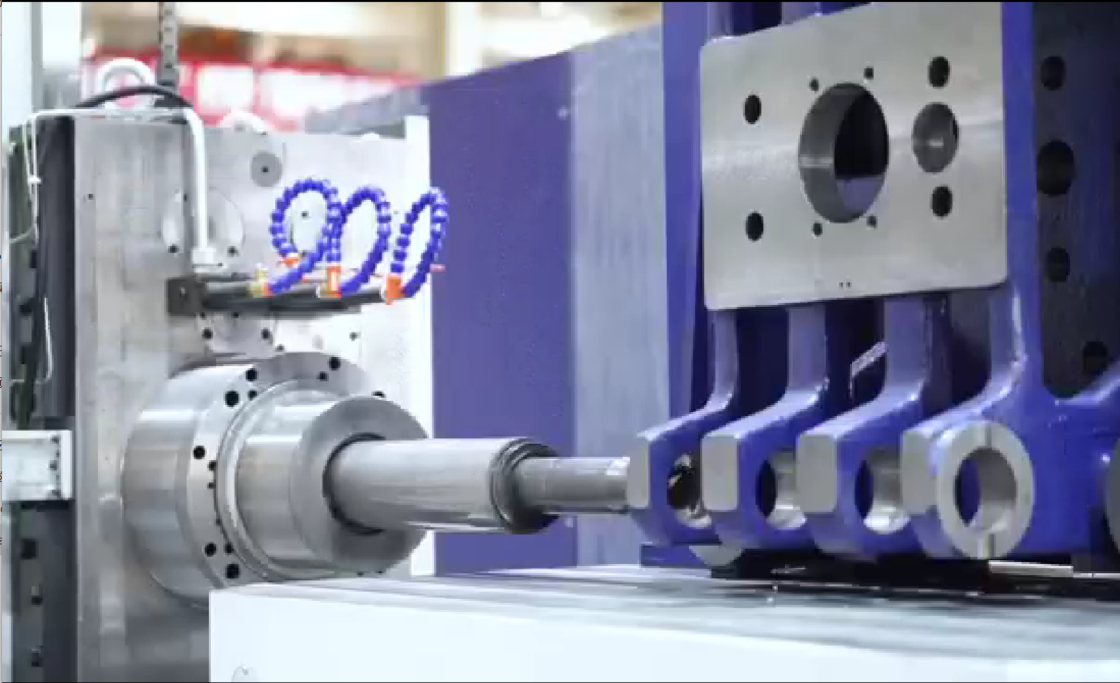

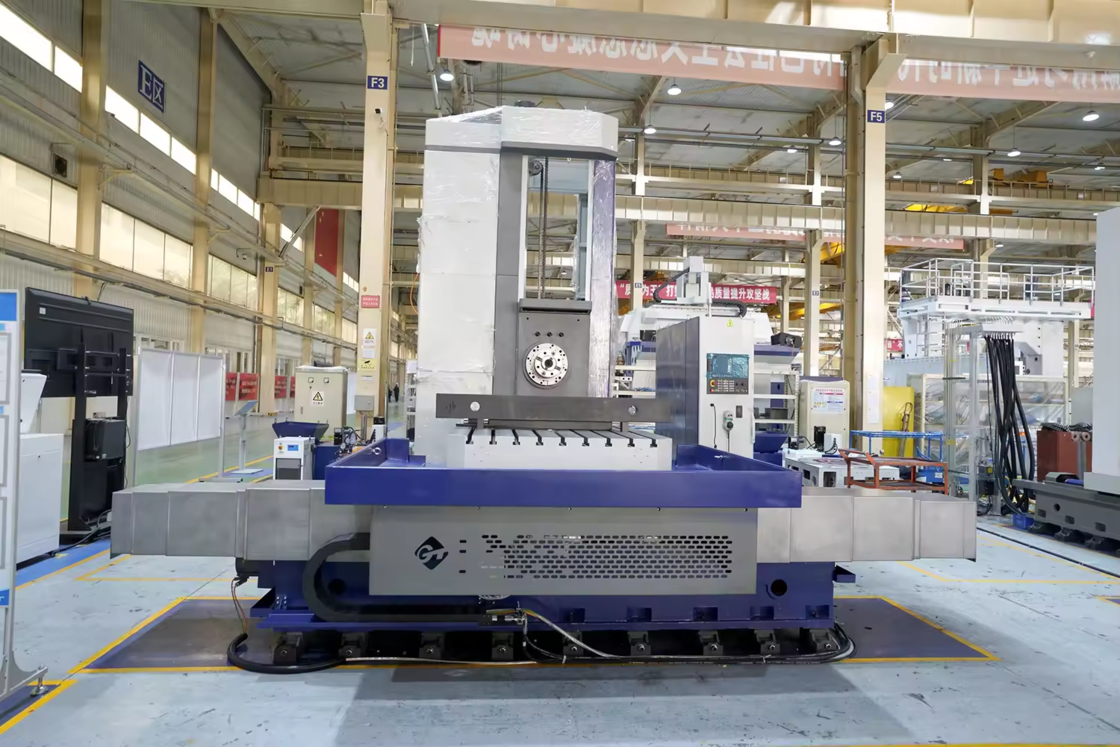

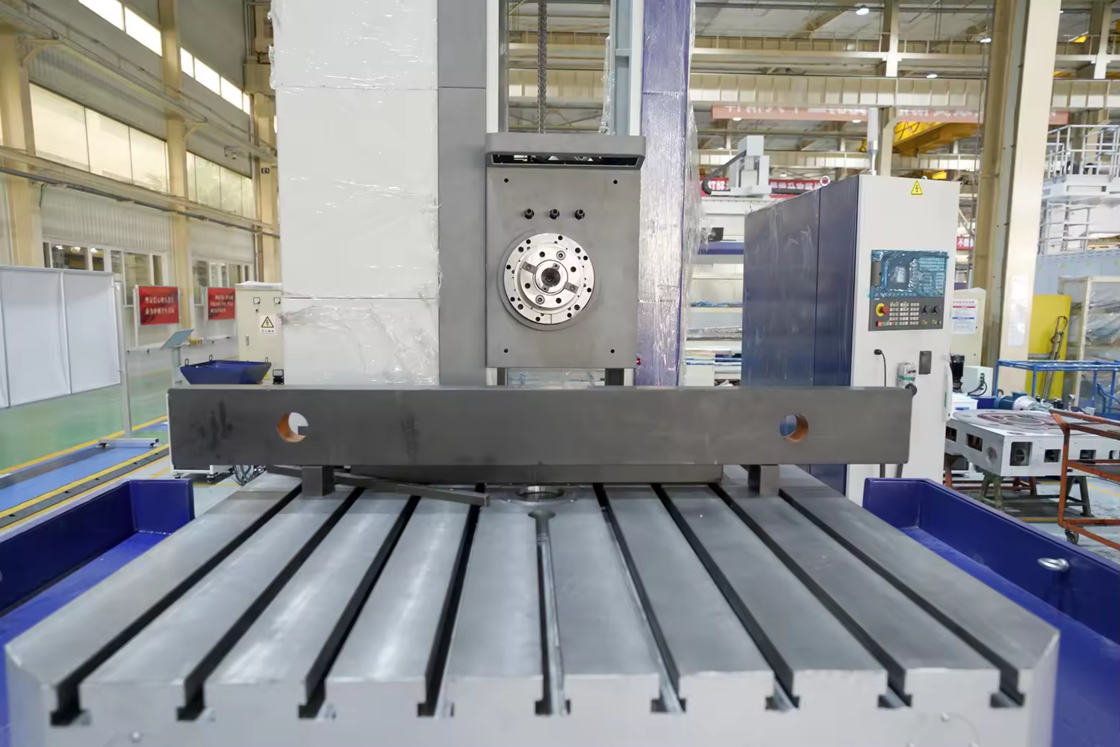

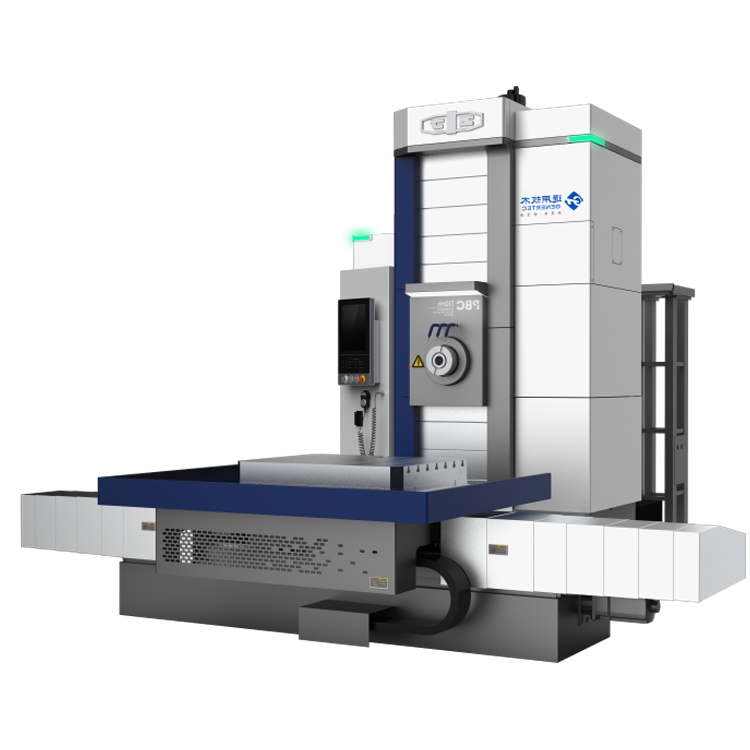

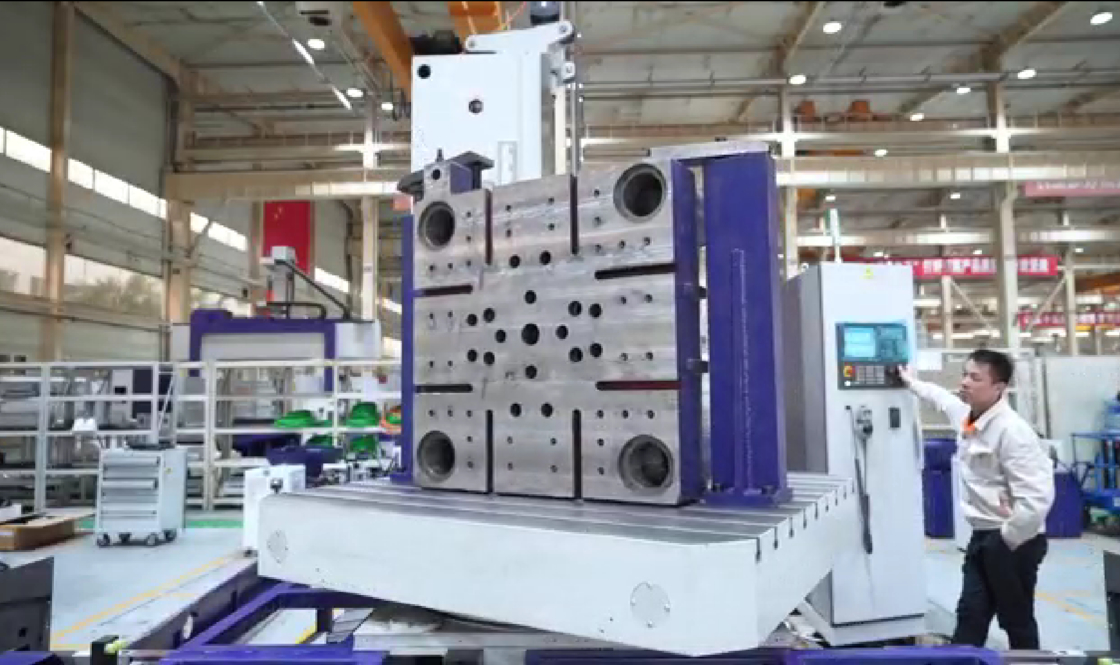

SMTCL PBC130m Horizontal Boring Milling Machine CNC Cylinder Boring Machine

1,Powerful Power Output: Spindle diameter reaches 130mm, maximum milling spindle torque is 2600 Nm, and power ranges from 25 to 30kW. It handles high-intensity machining tasks with ease, enabling smooth heavy-duty cutting.​

2,Excellent Load-Bearing Capacity & Travel: Worktable load capacity is up to 15,000kg, suitable for large and heavy workpieces. X-axis travel offers options of 2000mm, 3000mm, and 4000mm; Y-axis travel ranges from 1600 to 2500mm; Z-axis travel ranges from 1600 to 2000mm, providing a wide machining range.​

3,High Precision Guarantee: Adopts linear guides and ball screws, ensuring fast rapid traverse speed of each axis and accurate positioning. Equipped with well-known CNC systems such as Fanuc or Siemens (e.g., SIEMENS 828D) to meet strict machining precision requirements.​

4,Efficient Tool Change System: Features automatic tool change function. the efficient tool change mechanism reduces auxiliary machining time and improves overall machining efficiency.​

5,Stable & Reliable Structure: The machine adopts a T-shaped layout of longitudinal and transverse machine beds, offering excellent rigidity, stable performance, and high precision. It can also be equipped with various accessories such as CNC faceplates and vertical CNC turntables according to customer needs to expand the range of machining processes.
